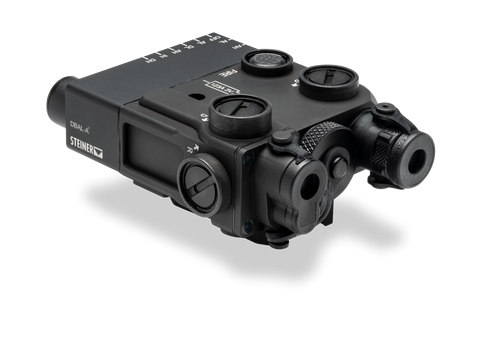

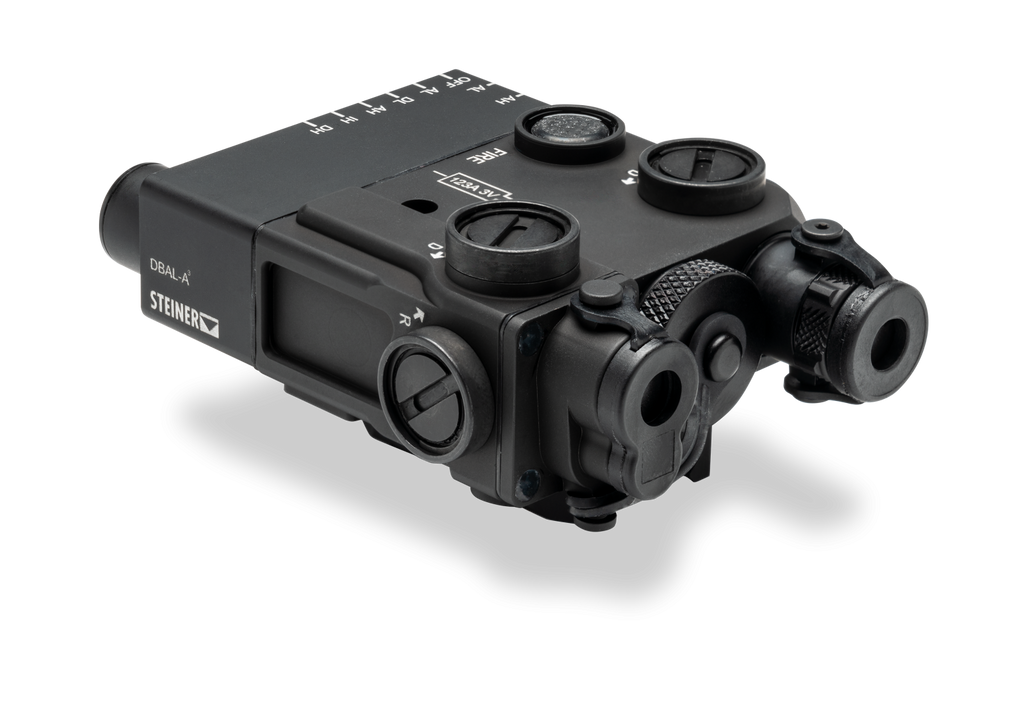

STEINER: DBAL-A3 Dual Beam Aiming Laser - Advanced 3

  • Sale
  • $1,649.99
  • Regular price $1,864.99


Dual Beam Aiming Laser - Advanced 3

Available for the commercial market, the first eye-safe IR laser pointer, IR illuminator and green laser pointer in a single compact unit. Features an adjustable IR illuminator for better illumination at longer ranges, dual activation switches and high/low power modes.

The DBAL-A3 civilian model is based on the standard issue DBAL-A3 for U.S. warfighters. And just like the restricted models, this unit offers the latest advances in IR and visible laser technology. The dual-beam infrared laser and illuminator combination is extremely accurate in low- and no-light maneuvers. In addition, the DBAL-A3 is the first to feature new defocused adjustable IR illumination technology to enable both midrange and close quarter target acquisition. The visible green laser's direct diode allows for cold weather operation as low as -20°C.

Item No.

Case Color

Laser Color

Visible Laser

IR Pointer

IR Illuminator


9008 Black
Green-Class IIIA <5 mW <0.7 mW, Class I Class 3R, <4.0 mW No


  • Low-profile windage and elevation adjusters
  • Dual remote cable ports – remote fire and visible override
  • High and low power modes
  • Single laser activation switch – tap and release for momentary activation, tap twice for 5 minute continuous on
  • Activation/Low battery indicator light
  • 6061-T6 Aircraft Aluminum, MIL-SPEC Type III Hardcoat Anodized Body
  • Attach to any Picatinny rail using patented, self-adjusting Quick Release HT Mount
  • Visible green laser
  • Weight (w/ batteries, dust cover, rail mount, and dual cable remote switch)* 7.7 ±0.4 oz. / 218 ±11.2 grams
  • Submersible to 10 m for 2 hours
  • Top choice for military units worldwide
Wavelength - Visible Red Laser -
Wavelength - Visible Green Laser 532 nm
Wavelength - IR Laser 850 nm
Wavelength - IR Illuminator 835 nm
Wavelength - White Light -
Peak Illuminance -
Beam Divergence - Visible Red or Green Laser <0.8 mRad
Beam Divergence - IR Laser <0.8 mRad
Beam Divergence - IR Illuminator 95 to 195mRad
Range/Visibility (Night/Day)* - Visible Green Laser 750m / 15m
Range/Visibility (Night/Day)* - Visible Red Laser -
Range/Visibility (Night/Day)* - IR Laser >250m
Range/Visibility (Night/Day)* - IR Illuminator >175m
Temperature +5 to +55 Celsius
Battery CR123A
Battery Life (mode dependent) >3 Hours
Material Aircraft Aluminum
Color Black
Weight (with battery) 8 oz
Dimensions 3.5 in x 2.75 in x 1.59 in
Waterproof Submersible to 5 m
Mount QD HT Mount
Windage and Elevation Adjustment Yes
Activation Switch Integrated Push Button
Remote Cable Pressure Pad Yes
Warranty 2 Year
